Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard

  • Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard
  • Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard
  • Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard
  • Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard
  • Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard
  • Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard
Tempat asal Guangzhou, Cina
Nama merek BERGMAN, BERGMAN
Nomor model 1330 45mm
Kuantitas min Order 1
Harga $60-90

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Ukuran 45mm Bahan wajah Tungsten Carbide TC
Bahan kursi Tungsten Carbide TC Bahan Elastomer VITON FPM
Bagian logam SS316 Hastelloy C AM350 Tekanan maksimal ≤ 1.5mpa
Kecepatan garis maks ≤ 15m/s Kisaran suhu -20 ° C-180 ° C.
Kode HTS 8484.20.00 Model yang kompatibel Flygt 1335.181, 2024, 2056, dll.
Kepatuhan standar DIN24960, ISO3069, EN12576, API682 Segel sekunder VITON FPM
Materi cincin-o Tergantung pada aplikasi Jenis produk Segel mekanis
Pengganti untuk Terbang 3085
Menyoroti

Replace Flygt 1330 Pump Mechanical Seal

,

DIN24960 Standard Mechanical Seal

,

ISO3069 Standard Upper Seal
Tinggalkan pesan
Deskripsi Produk
Replace Flygt 45mm 1330 Pump Mechanical Seal Upper Seal
Product Overview

This mechanical seal is designed as a replacement for Flygt pump models, offering high-quality materials and precise engineering for reliable performance in demanding industrial applications.

Technical Specifications
Parameter Value Parameter Value
Name Mechanical Seal Size Standard size 20mm
Brand BERGMAN Model 45mm, 25mm
Pressure ≤ 1.5mpa Line Speed ≤ 15m/s
Temperature -20°C-180°C (Depends on O-ring material) Application Flygt pump
Face Material Tungsten carbide TC Seat Material Tungsten carbide TC
Secondary Seal VITON FPM Metal Parts SS316 Hastelloy C AM350
Certificate ISO9001-2015 Service OEM customization service
Compatible Flygt Pump Models

This mechanical seal is compatible with a wide range of Flygt pump models including:

  • 1335.181, 2024, 2056, 2102.220, 2050, 2052, 2060, 2066
  • 2070, 2071, 2075, 2082, 2084, 2090, 2095, 2101, 2012, 2102
  • 2125, 2135, 2140, 2151, 2201, 2250, 2400, 2610, 2620, 2630
  • 2660, 2670, 2730, 2740, 3041, 3045, 3050, 3057, 3060, 3065
  • 3066, 3067, 3068, 3069, 3080, 3082, 3085, 3101, 3102, 3126
  • 3127, 3140, 3151, 3152, 3153, 3170, 3171, 3200, 3202, 3230
  • 3231, 3300, 3301, 3306, 3310, 3311, 3350, 3351, 3356, 3400
  • 3501, 3530, and full range of Flygt pump mechanical seals
Key Features
  • Complies with DIN24960, ISO3069, EN12576, API682 standards
  • Can replace original seals with cost-effective alternatives
  • Large inventory with factory-direct pricing for faster delivery
  • Compatible with Burgman, John Crane, AES and other major brands
  • OEM and customized services available
  • Premium materials including tungsten carbide, silicon carbide, and carbon graphite
Product Images

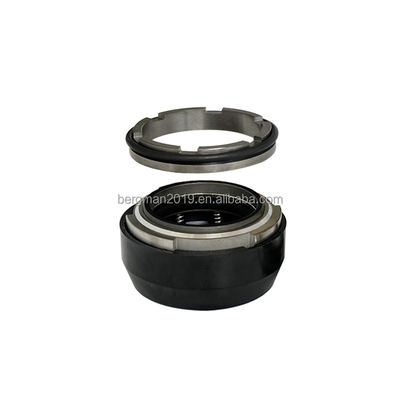

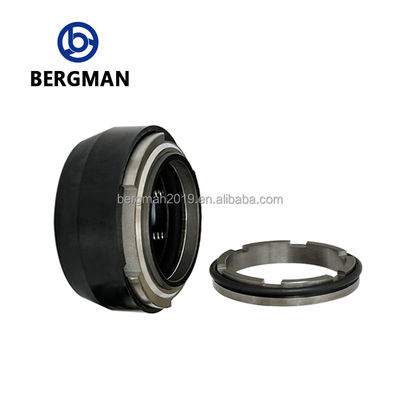

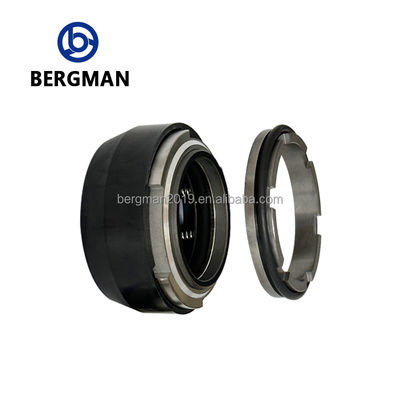

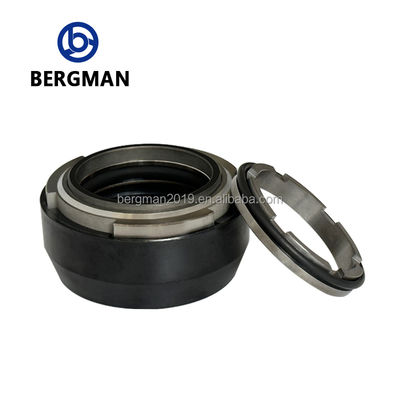

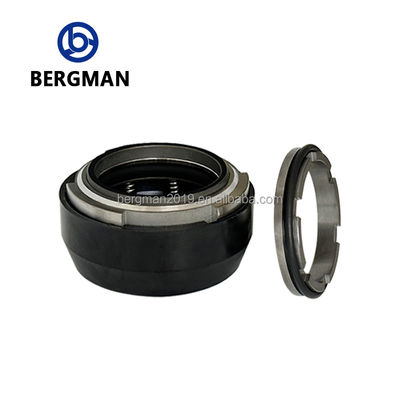

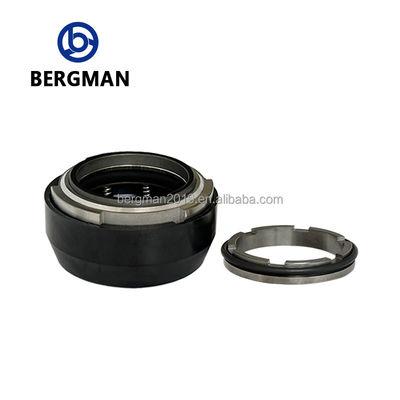

Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard 0 Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard 1 Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard 2
Company Profile

Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) has been in operation since 1996. With over 20 years of development, we have established ourselves as a leading manufacturer of high-quality mechanical seals.

Our company has passed the quality management system GB/T19001-2016 idt ISO9001:2015 certification and offers a comprehensive range of mechanical seals including:

  • Pump mechanical seals
  • Axe mechanical seals
  • Fluid mechanical seals
  • Metal bellows mechanical seals
  • Various sealing materials including cemented carbide, silicon carbide, and carbon graphite
Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard 3
Our Facilities
  • 2,000+ square meter warehouse with large inventory
  • Modern advanced machine tool equipment
  • Dust-free workshop environment
  • Comprehensive inspection equipment
  • Efficient assembly line operations
Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard 4 Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard 5
Application Range

Our mechanical seals are widely used in:

  • Pipeline pumps, centrifugal pumps, sewage pumps, chemical pumps
  • Petroleum, chemical, aerospace, pharmaceutical, and food industries
  • Agricultural irrigation systems
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is located in Guangzhou City, near Guangzhou Port and Shenzhen Port.
Q: How many days is your delivery time?
A: Stock items ship immediately after payment. Custom items require 10-25 days for production.
Q: Do you provide free samples?
A: Samples are typically not free, but sample costs can be refunded after order placement.
Q: What are your payment terms?
A: Stock items: 100% prepayment. Custom items: 30% deposit, 70% before shipping. We accept T/T, Western Union, and Alibaba payments.
